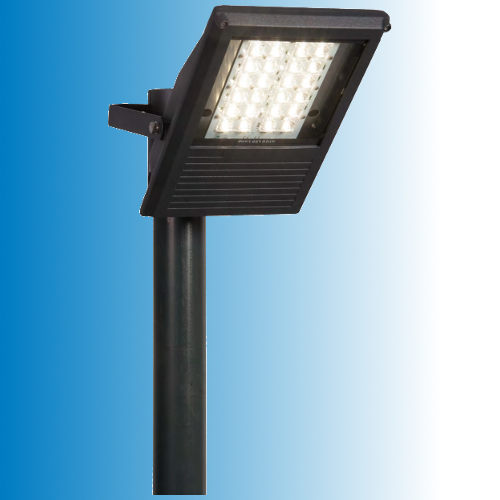

The "small" POWERFUL - SIRIUS compact ECO
The Sirius compact ECO fulfilling, reliable and efficient lighting tasks with a pronounced need for light
The elegant and flat shape, bright and reliable characterizes the lighting series Sirius Eco. To the applications of a pronounced light it needs demanding lighting tasks.
The compact LED area floodlights are based on high-performance, high-efficiency LED light sources from our own development and production,
combined with its light Miniature lenses are conducted extensively to the planned target area.
Luminaire model
- LED up and lateral mounted luminaire for mast height and road goes up to 6 m
- Degree of protection IP66, protection class I or II
- Applications: Surfaces spotlight for traffic roads, pedestrian areas, parking, Illumination of buildings and advertising spaces
- Temperature range: ta -30°C to +35°C
Light engineering
- Effective LED lens combination, selectively insertable lens optics, flexible in emission characteristic for street and area lighting
- LED lifetime: >100.000 h (L80/B10), reliability through LED Bypass
- Color temperatures*: 5000 K (CW), 4000 K (NW), 3000 K(WW, other color temperatures on request..
- Color rendering index: Ra >70 (CW, NW), Ra >80 (WW)
- Dimming by reducing the power of all LED, no partial shutdown)
- Light emission: 0% in the upper half space at 0 ° tilt
Electronic control device
- Control wire halfnight switching, Optional: 1-10V or DALI interface
- Electronics with condensation protection (coating), shed optional
- Constant current mode, LED current set at the factory in accordance with light output
- With thermal monitoring of the LED module and current reduction
- voltage surge firmness > 4 kV L / N-GND, up to 10 kV optional on request
Lightmanagement
- Night reduction via control wire by default 50%
Optionally:
- Night reduction between 10% and 90% factory securable
- Luminous flux readjusting (CLM), factory programmed
- Connection of different light sensors / motion detector
- Intelligent switching depending on dimming times Control
- All optional functions individually programmable and upgradeable.
Housing
- Opened without tools, robust housing made of die-cast aluminum
- Clear, domed cover made of inorganic glass
- No overhead cooling fins, top domed for self-cleaning
- Highly Weather-resistant powder coating in RAL 9006 or DB 703, special painting on request
- Integrated pressure equalization valve, improved thermal management by separate modules for LED lamps and operating device, each separately replaceable,
- Optional incl. Prefabricated connection cable
Dimensions:
- Length: 590 mm
- Height: 145 mm
- Width: 400 mm
- Weight: 12 kg
- Wind target area: 0,09 m²
Electrical connection
- Terminals up to 2,5 mm²
- Cable gland for strain relief, suitable for cable diameters from 6 to 12 mm
- Rated voltage 230 V ± 10%, AC, 50/60 Hz
Mounting
- By default, with mounting strap
- Pole-top and mast boom 60 and 76 mm
- For details, see Installation / Operating Instructions!
Approbation
Approval marks:
- ENEC 10, VDE (in preparation)
Production locations certified to:
- ISO 9001:2008
- ISO/TS 16949:2009
VDE-monitoring by:
- ECS/CIG 021-024
LED-System**
LED current
Number of LEDs
System performance with 100% works
System performance with 50 % works
Luminous flux light color WW
Luminous flux light color NW/CW
350 mA
16
19 W
12 W
1.450 lm
1.900 lm
400 mA
16
21 W
12 W
1.600 lm
2.150 lm
450 mA
16
24 W
14 W
1.800 lm
2.400 lm
500 mA
16
27 W
15 W
1.950 lm
2.600 lm
550 mA
16
29 W
16 W
2.100 lm
2.800 lm
600 mA
31
17 W
16 W
2.300 lm
3.050 lm
LED current
Number of LEDs
System performance with 100% works
System performance with 50 % works
Luminous flux light color WW
Luminous flux light color NW/CW
350 mA
24
26 W
15 W
2.150 lm
2.900 lm
400 mA
24
30 W
17 W
2.450 lm
3.250 lm
450 mA
24
34 W
19 W
2.700 lm
3.600 lm
500 mA
24
38 W
21 W
2.950 lm
3.950 lm
550 mA
24
41 W
22 W
3.150 lm
4.200 lm
600 mA
24
45 W
29 W
3.450 lm
4.600 lm
** We reserve the right to make technical changes.
Light distribution
MW 1
MW 2
MW 3
UW 1
SP 1
FL 4

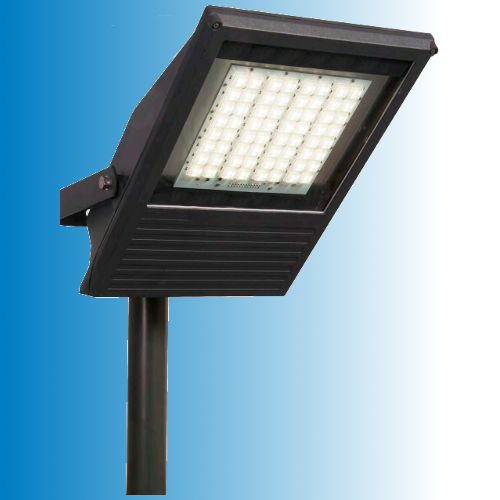

POWERFUL AND EFFICIENT ENERGY - SIRIUS MAXI ECO
The Sirius Maxi ECO has a high-performance photometry for various lighting situations having particularly a pronounced lighting requirements.
The new lens system enables the flexibility combined to the LED modules particularly pronounced lighting requirements.
The luminaires of Sirius Eco Series operating devices are also available with different current options.
Additional energy savings provides the standard integrated, lossless half night switching.
Luminaire model
- LED up and lateral mounted luminaire for mast height and road goes up to 6 m
- Degree of protection IP66, protection class I or II
- Applications: Surfaces spotlight for traffic roads, pedestrian areas, parking, Illumination of buildings and advertising spaces
- Temperature range: ta -30°C to +35°C
Light engineering
- Effective LED lens combination, selectively insertable lens optics, flexible in emission characteristic for street and area lighting
- LED lifetime: >100.000 h (L80/B10), reliability through LED Bypass
- Color temperatures*: 5000 K (CW), 4000 K (NW), 3000 K(WW, other color temperatures on request..
- Color rendering index: Ra >70 (CW, NW), Ra >80 (WW)
- Dimming by reducing the power of all LED, no partial shutdown)
- Light emission: 0% in the upper half space at 0 ° tilt
Electronic control device
- Control wire for halfnight switching, optional: 1-10V or DALI interface
- Electronics with condensation protection (coating), shed optional
- Constant current mode, LED current set at the factory in accordance with light output
- With thermal monitoring of the LED module and current reduction
- voltage surge firmness > 4 kV L / N-GND, up to 10 kV optional on request
Lightmanagement
- Night reduction via control wire by default 50%
Optionally:
- Night reduction between 10% and 90% factory securable
- Luminous flux readjusting (CLM), factory programmed
- Connection of different light sensors / motion detector
- Intelligent switching times dependent dimmingtimes Control
- All optional functions individually programmable and upgradeable.
Housing
- Opened without tools, robust housing made of die-cast aluminum
- Clear, domed cover made of inorganic glass
- No overhead cooling fins, top domed for self-cleaning
- Highly Weather-resistant powder coating in RAL 9006 or DB 703, special painting on request
- Integrated pressure equalization valve, improved thermal management by separate modules for LED lamps and operating device, each separately replaceable.
- Optional incl. Prefabricated connection cable
Dimensions:
- Length: 590 mm
- Height: 145 mm
- Width: 400 mm
- Weight: 12 kg
- Wind target area: 0,09 m²
Electrical connection
- Terminals up to 2,5 mm²
- Cable gland for strain relief, suitable for cable diameters from 6 to 12 mm
- Rated voltage 230 V ± 10%, AC, 50/60 Hz
Mounting
- By default, with mounting strap
- Pole-top and mast boom 60 and 76 mm
- For details, see Installation / Operating Instructions!
Approbation
Approval marks:
- ENEC 10, VDE (in preparation)
Production locations certified to:
- ISO 9001:2008
- ISO/TS 16949:2009
VDE-monitoring by:
- ECS/CIG 021-024
LED-System**
LED current
Number of LEDs
System performance with 100% works
System performance with 50 % works
Luminous flux light color WW
Luminous flux light color NW/CW
350 mA
48
52 W
30 W
4.350 lm
5.800 lm
400 mA
48
59 W
33 W
4.900 lm
6.550 lm
450 mA
48
68 W
38 W
5.400 lm
7.200 lm
500 mA
48
75 W
41 W
5.950 lm
7.900 lm
550 mA
48
82 W
45 W
6.350 lm
8.450 lm
LED current
Number of LEDs
System performance with 100% works
System performance with 50 % works
Luminous flux light color WW
Luminous flux light color NW/CW
350 mA
64
67 W
37 W
5.800 lm
7.750 lm
400 mA
64
76 W
42 W
6.550 lm
8.750 lm
450 mA
64
87 W
47 W
7.200 lm
9.600 lm
500 mA
64
102 W
56 W
7.950 lm
10.550 lm
550 mA
64
111 W
61 W
8.450 lm
11.300 lm
** We reserve the right to make technical changes.
