Luminaire series Classic

ttl-m2

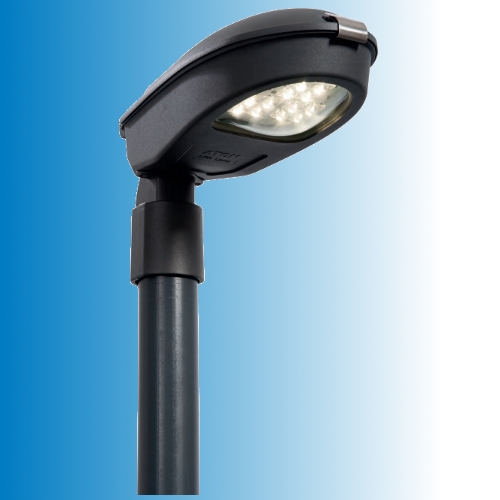

The Classic Compact Eco is ideal for the uniformly and efficient lighting of minor and residential roads, paths and open spaces.
The timeless lighting design combined with modern, functional technique LED City lights makes this luminaire a classic system. The different versions within the Classic Eco series depends on the requirements of a wide range of applications.
In the luminaire Classic Compact Eco Special attention was paid into the luminaire Classic Compact Eco's energy conservation and efficiency. This luminaire has high energy efficiency and outstanding light output.

Luminaire model

- LED up and lateral mounted luminaire for mast height and road goes up to 6 m
- Degree of protection IP66, protection class I or II
- Applications: Surfaces spotlight for traffic roads, pedestrian areas, parking, Illumination of buildings and advertising spaces
- Temperature range: ta -30°C to +35°C

Light engineering

- Effective LED lens combination, selectively insertable lens optics, flexible in emission characteristic for street and area lighting
- LED lifetime: >100.000 h (L80/B10), reliability through LED Bypass
- Color temperatures*: 5000 K (CW), 4000 K (NW), 3000 K(WW, other color temperatures on request..
- Color rendering index: Ra >70 (CW, NW), Ra >80 (WW)
- Dimming by reducing the power of all LED, no partial shutdown)
- Light emission: 0% in the upper half space at 0 ° tilt

Electronic control device

- Control wire halfnight switching, Optional: 1-10V or DALI interface
- Electronics with condensation protection (coating), shed optional
- Constant current mode, LED current set at the factory in accordance with light output
- With thermal monitoring of the LED module and current reduction
- voltage surge firmness > 4 kV L / N-GND, up to 10 kV optional on request

Lightmanagement

- Night reduction via control wire by default 50%
Optionally:
- Night reduction between 10% and 90% factory securable
- Luminous flux readjusting (CLM), factory programmed
- Connection of different light sensors / motion detector
- Intelligent switching depending on dimming times Control
- All optional functions individually programmable and upgradeable.

Housing

- Opened without tools, robust housing made of die-cast aluminum
- Clear, domed cover made of inorganic glass
- No overhead cooling fins, top domed for self-cleaning
- Highly Weather-resistant powder coating in RAL 9006 or DB 703, special painting on request
- Integrated pressure equalization valve, improved thermal management by separate modules for LED lamps and operating device, each separately replaceable,
- Optional incl. Prefabricated connection cable

Dimensions:
- Length: 450 mm
- Height: 135 mm
- Width: 200 mm
- Weight: 3.2 kg
- Wind target area: 0,06 m²

Electrical connection

- Terminals up to 2,5 mm²
- Cable gland for strain relief, suitable for cable diameters from 6 to 12 mm
- Rated voltage 230 V ± 10%, AC, 50/60 Hz

Mounting

Fastening elements are available in the following variants:
- Pole top and mast boom 48/60/76 mm
- Variable spigot with adjustable tilt angle, 5 ° increments, spigot dimension 48/60/76 mm
- Angle for post-top: + 15 ° / -5 °
- Angle for mastboom: + 5 ° / -15 °
- For details, see Installation / Operating Instructions!

Approbation

Approval marks:
- ENEC 10, VDE (in preparation)
Production locations certified to:
- ISO 9001:2008
- ISO/TS 16949:2009
VDE-monitoring by:
- ECS/CIG 021-024

LED-System**

LED current Number of LEDs System performance with 100% works System performance with 50 % works Luminous flux light color WW Luminous flux light color NW/CW
350 mA 12 15 W 10 W 1.050 lm 1.450 lm
400 mA 12 17 W 11 W 1.200 lm 1.600 lm
450 mA 12 19 W 12 W 1.350 lm 1.800 lm
500 mA 12 20 W 12 W 1.450 lm 1.950 lm
550 mA 12 23 W 13 W 1.550 lm 2.100 lm
600 mA 12 25 W 15 W 1.700 lm 2.300 lm
** We reserve the right to make technical changes.

Light distribution

SL 1 SL 2 SL 3
SL 4 SL 5 SL 6
SL 7 PL 1 PL 2
ttl-m2

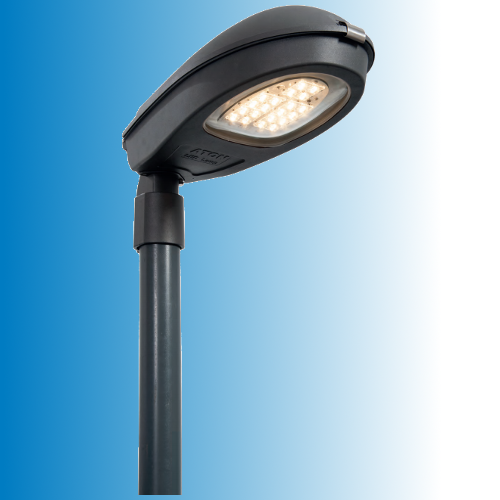

Whether parking spots, bike trails, residents streets, collector roads or crossing area - The Classic standard ECO is an energy-efficient and environmentally friendly lighting solution for numerous public lighting tasks.

The luminaires in the Classic Eco series provide an optimal solution for small communities and cities, amongst whom efficient lighting and Energy savings can be achieved.
The different versions within one luminaire series deliver excellent and flexible photometric performance and thus ensure security and well-being in public space.

Luminaire model

- LED up and lateral mounted luminaire for mast height and road goes up to 6 m
- Degree of protection IP66, protection class I or II
- Applications: Surfaces spotlight for traffic roads, pedestrian areas, parking, Illumination of buildings and advertising spaces
- Temperature range: ta -30°C to +35°C

Light engineering

- Effective LED lens combination, selectively insertable lens optics, flexible in emission characteristic for street and area lighting
- LED lifetime: >100.000 h (L80/B10), reliability through LED Bypass
- Color temperatures*: 5000 K (CW), 4000 K (NW), 3000 K(WW, other color temperatures on request..
- Color rendering index: Ra >70 (CW, NW), Ra >80 (WW)
- Dimming by reducing the power of all LED, no partial shutdown)
- Light emission: 0% in the upper half space at 0 ° tilt

Electronic control device

- Control wire halfnight switching, Optional: 1-10V or DALI interface
- Electronics with condensation protection (coating), shed optional
- Constant current mode, LED current set at the factory in accordance with light output
- With thermal monitoring of the LED module and current reduction
- voltage surge firmness > 4 kV L / N-GND, up to 10 kV optional on request

Lightmanagement

- Night reduction via control wire by default 50%
Optionally:
- Night reduction between 10% and 90% factory securable
- Luminous flux readjusting (CLM), factory programmed
- Connection of different light sensors / motion detector
- Intelligent switching depending on dimming times Control
- All optional functions individually programmable and upgradeable.

Housing

- Opened without tools, robust housing made of die-cast aluminum
- Clear, domed cover made of inorganic glass
- No overhead cooling fins, top domed for self-cleaning
- Highly Weather-resistant powder coating in RAL 9006 or DB 703, special painting on request
- Integrated pressure equalization valve, improved thermal management by separate modules for LED lamps and operating device, each separately replaceable,
- Optional incl. Prefabricated connection cable

Dimensions:
- Length: 570 mm
- Height: 175 mm
- Width: 257 mm
- Weight: 4.8 kg
- Wind target area: 0,1 m²

Electrical connection

- Terminals up to 2,5 mm²
- Cable gland for strain relief, suitable for cable diameters from 6 to 12 mm
- Rated voltage 230 V ± 10%, AC, 50/60 Hz

Mounting

Fastening elements are available in the following variants:
- Pole top and mast boom 48/60/76 mm
- Variable spigot with adjustable tilt angle, 5 ° increments, spigot dimension 48/60/76 mm
- Angle for post-top: + 15 ° / -5 °
- Angle for mastboom: + 5 ° / -15 °
- For details, see Installation / Operating Instructions!

Approbation

Approval marks:
- ENEC 10, VDE (in preparation)
Production locations certified to:
- ISO 9001:2008
- ISO/TS 16949:2009
VDE-monitoring by:
- ECS/CIG 021-024

LED-System**

LED current Number of LEDs System performance with 100% works System performance with 50 % works Luminous flux light color WW Luminous flux light color NW/CW
350 mA 20 22 W 13 W 1.800 lm 2.400 lm
400 mA 20 26 W 15 W 2.050 lm 2.700 lm
450 mA 20 29 W 16 W 2.250 lm 3.000 lm
500 mA 20 32 W 18 W 2.450 lm 3.300 lm
550 mA 20 35 W 19 W 2.650 lm 3.500 lm
600 mA 20 38 W 21 W 2.850 lm 3.800 lm
700 mA 20 43 W 23 W 3.300 lm 4.400 lm
** We reserve the right to make technical changes.

Light distribution

SL 1 SL 2 SL 3
SL 4 SL 5 SL 6
SL 7 PL 1 PL 2
ttl-m2

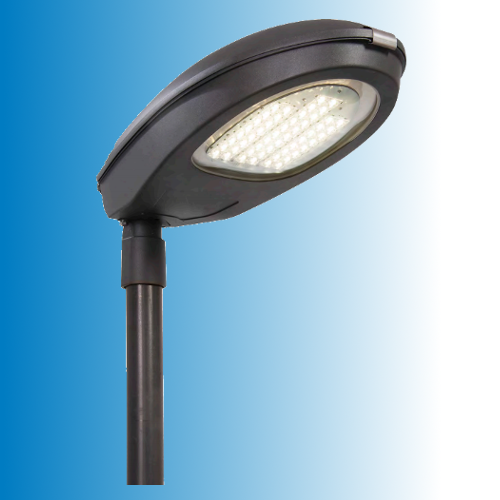

The Classic Maxi ECO has a high-performance photometry for various lighting situations. -> The new lens system enables the flexibility combining the LED modules depending on requirements.
The luminaires in the Classic Eco Series Featuring control gears are also available with different current options. Further energy savings can be achieved by the standard integrated, lossless halfnight switching.

Luminaire model

- LED up and lateral mounted luminaire for mast height and road goes up to 6 m
- Degree of protection IP66, protection class I or II
- Applications: Surfaces spotlight for traffic roads, pedestrian areas, parking, Illumination of buildings and advertising spaces
- Temperature range: ta -30°C to +35°C

Light engineering

- Effective LED lens combination, selectively insertable lens optics, flexible in emission characteristic for street and area lighting
- LED lifetime: >100.000 h (L80/B10), reliability through LED Bypass
- Color temperatures*: 5000 K (CW), 4000 K (NW), 3000 K(WW, other color temperatures on request..
- Color rendering index: Ra >70 (CW, NW), Ra >80 (WW)
- Dimming by reducing the power of all LED, no partial shutdown)
- Light emission: 0% in the upper half space at 0 ° tilt

Electronic control device

- Control wire halfnight switching, Optional: 1-10V or DALI interface
- Electronics with condensation protection (coating), shed optional
- Constant current mode, LED current set at the factory in accordance with light output
- With thermal monitoring of the LED module and current reduction
- voltage surge firmness > 4 kV L / N-GND, up to 10 kV optional on request

Lightmanagement

- Night reduction via control wire by default 50%
Optionally:
- Night reduction between 10% and 90% factory securable
- Luminous flux readjusting (CLM), factory programmed
- Connection of different light sensors / motion detector
- Intelligent switching depending on dimming times Control
- All optional functions individually programmable and upgradeable.

Housing

- Opened without tools, robust housing made of die-cast aluminum
- Clear, domed cover made of inorganic glass
- No overhead cooling fins, top domed for self-cleaning
- Highly Weather-resistant powder coating in RAL 9006 or DB 703, special painting on request
- Integrated pressure equalization valve, improved thermal management by separate modules for LED lamps and operating device, each separately replaceable,
- Optional incl. Prefabricated connection cable

Dimensions:
- Length: 800 mm
- Height: 230 mm
- Width: 360 mm
- Weight: 9.7 kg
- Wind target area: 0,18 m²

Electrical connection

- Terminals up to 2,5 mm²
- Cable gland for strain relief, suitable for cable diameters from 6 to 12 mm
- Rated voltage 230 V ± 10%, AC, 50/60 Hz

Mounting

Fastening elements are available in the following variants:
- Pole top and mast boom 48/60/76 mm
- Variable spigot with adjustable tilt angle, 5 ° increments, spigot dimension 48/60/76 mm
- Angle for post-top: + 15 ° / -5 °
- Angle for mastboom: + 5 ° / -15 °
- For details, see Installation / Operating Instructions!

Approbation

Approval marks:
- ENEC 10, VDE (in preparation)
Production locations certified to:
- ISO 9001:2008
- ISO/TS 16949:2009
VDE-monitoring by:
- ECS/CIG 021-024

LED-System**

LED current Number of LEDs System performance with 100% works System performance with 50 % works Luminous flux light color WW Luminous flux light color NW/CW
350 mA 40 45 W 26 W 3.650 lm 4.850 lm
400 mA 40 53 W 30 W 4.100 lm 5.450 lm
450 mA 40 58 W 33 W 4.500 lm 6.000 lm
500 mA 40 64 W 36 W 4.950 lm 6.600 lm
550 mA 40 70 W 39 W 5.300 lm 7.050 lm
600 mA 40 76 W 42 W 5.750 lm 7.650 lm

LED current Number of LEDs System performance with 100% works System performance with 50 % works Luminous flux light color WW Luminous flux light color NW/CW
350 mA 52 56 W 32 W 4.700 lm 6.300 lm
400 mA 52 63 W 35 W 5.350 lm 7.100 lm
450 mA 52 71 W 29 W 4.500 lm 6.000 lm
500 mA 52 81 W 44 W 4.950 lm 6.600 lm
550 mA 52 88 W 48 W 6.900 lm 9.150 lm
600 mA 52 100 W 55 W 7.500 lm 9.950 lm
** We reserve the right to make technical changes.

Light distribution

SL 1 SL 2 SL 3
SL 4 SL 5 SL 6
SL 7 PL 1 PL 2
