General technical data:

Luminaire type:

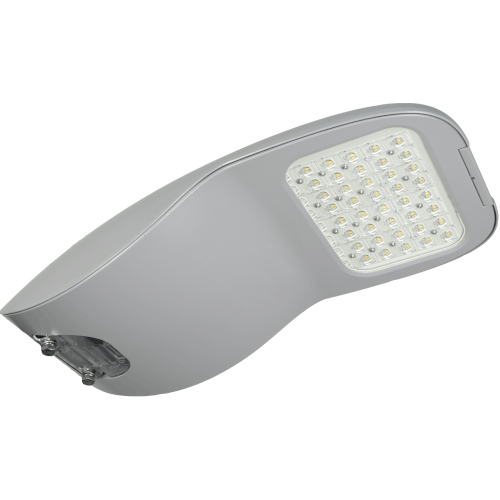

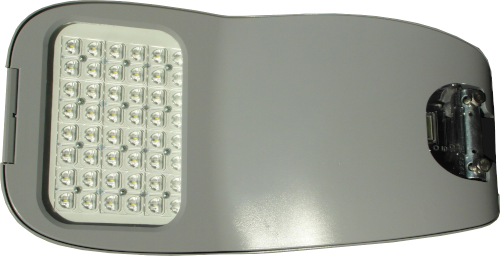

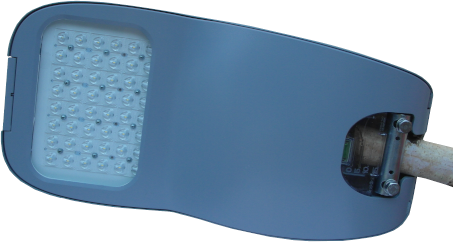

· LED surface-mounted and post-top light
· Mast height (MH): up to 10 m
Areas of application:
· Collection roads
· Main roads
· Parking spaces
· Crossing areas

Product Specifications:

Luminous flux: 6600 lm ±% 10
System power: 50 W
Light color / color temperatures * C: Neutral white / 4000 K
Color rendering: CRI> 70
System efficiency: up to 130 lm / W
Optical system: PMMA lens optics — asymmetrical
Specified service life: 100,000 hours at 25 °
Operating temperature range: -40 ° - +50 ° C
Type of protection, protection class: IP 66, PC I or II
Light management:
· Half-night service
· Optional auto dimmer (self-sufficient)
Manufacturer's guarantee for the entire system: See service model 5 years, optionally 10 years e

Electrical characteristics:

Mains voltage: 220 ~ 240 Vac
Mains frequency: 50 ~ 60 Hz
Mode of operation: constant current
Power factor: PF> 0.9
Maintenance factor: 0.90
Certificates: ENEC 05, CE, VDE (pending)

Mechanical characteristics:

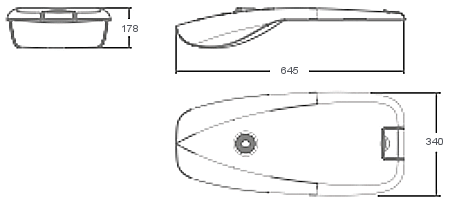

Dimensions (LxWxH): 645x340x178 mm
Housing: die-cast aluminum
Surface: powder coating in RAL 9006, special paint on request
Weight: 6.5 kg
Impact resistance (IK): IK08, 4 mm safety glass

Optical modules / street optics

Different optical modules are available for the street lights to ensure optimal light distribution.
Here are typical street looks. Other optics possible for extended requirements!

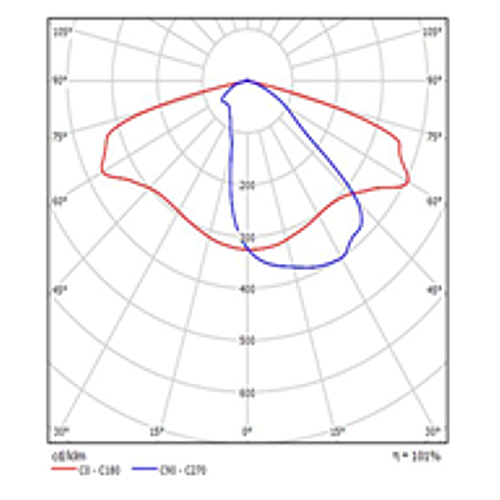

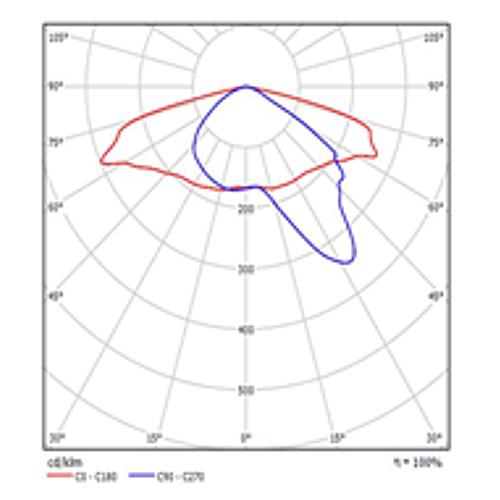

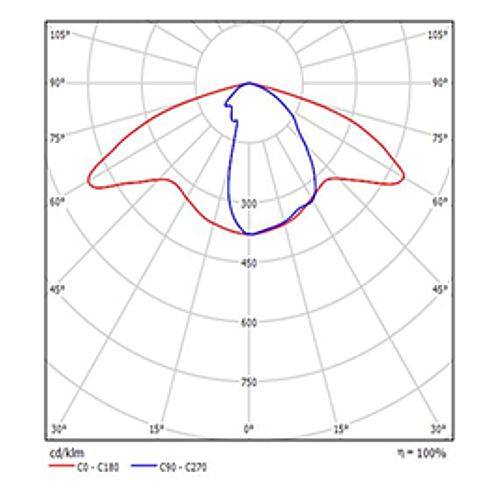

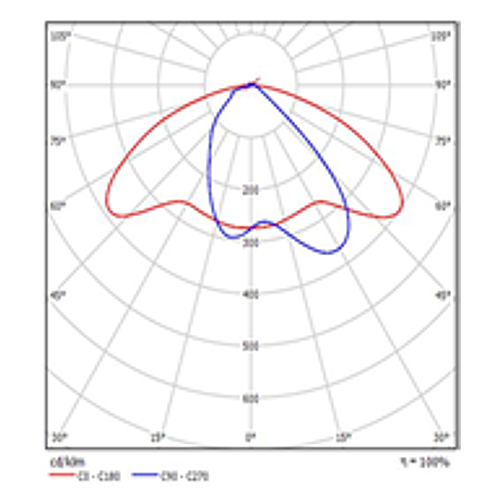

Light distribution V1 - Default

Light distribution V2

Light distribution V3

Light distribution V4

Light distribution V5

TTL-service model with spare lamps

· Defective lights will be taken back within the guarantee period and exchanged for a replacement light of the same type and age.

· Replacement lights are provided for orders of 50 or more and are included in the scope of delivery. These lights are only intended to replace defective lights. If all replacement lights are installed, the defective lights will be sent back to Friedhelm Trapp GmbH.
  In return, the customer receives the same number of replacement lights during the warranty period..
