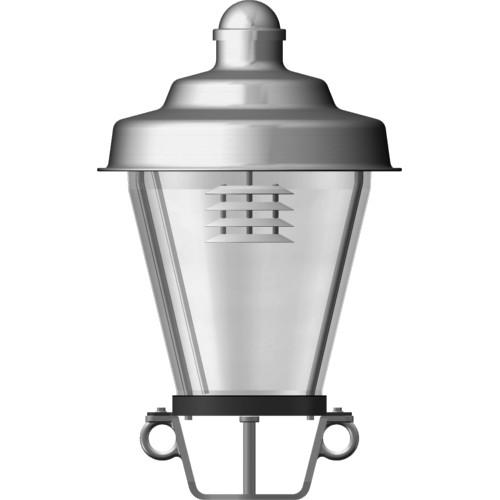

Historical luminaire L 700

gbs l 700

Luminaire dimensions:

    · Luminaire height 810 mm,
    · Roof ø 545 mm
    · Recommended light point height up to 5 m

gbs l 700
 Areas of application:
    · Fixed lighting of residential, roads and shopping streets
    · Park and green areas
    · Pedestrian zones
    · Parking spaces
 Light point height:
    · up to 5 m
 Maintenance:
    · Toolless
 Electrical installation:
    · LED
    · HPS 35-100 Watt
    · HID 35-70 Watt
    · TCD
    · VDE test mark on all electrical components
    · manufactured and tested according to VDE guidelines
    · CE mark
    · Electrical unit is compensated
    · Luminaire with connection cable to cable junction box
 IEC protection classes:
    · I
 IP Code:
    · IP 54
 Material:
    · Luminaire basket in galvanized steel
    · Luminaire bow made of aluminum casting
    · Copper roof
 Coating:
    · all parts are coated after careful preparation in all RAL colors or   DB shades
    · Copper roof natural
 Glass:
    · Polycarbonate clear, or blind
 Fastening:
    · All fastening elements are made of stainless steel
 Special equipment:
    · IEC protection classes II
    · Power selector
    · Shielding with asymmetrical light distribution
    · Symmetrical lamella reflector mirrored
    · Roof made of aluminum
    · Electrical outlet at luminaire base

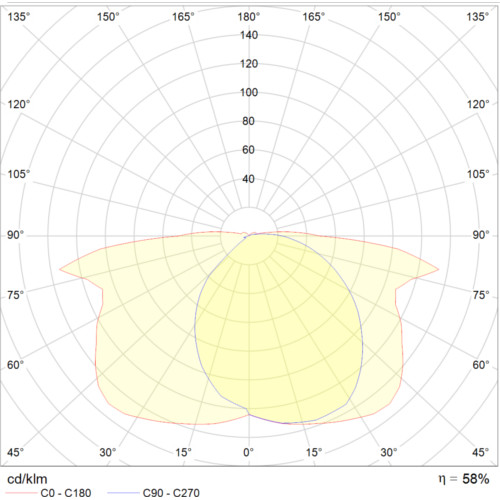

Polardiagram:

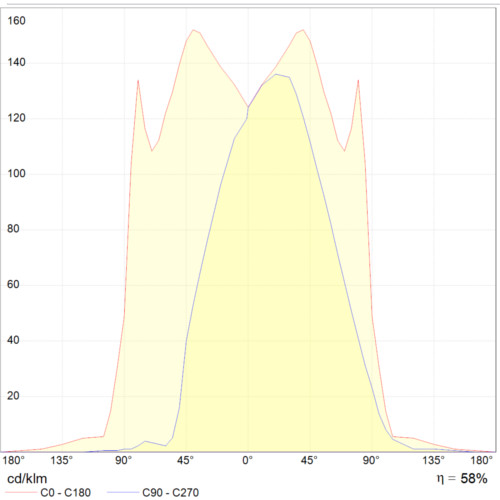

Cartesian diagram:
Light source: HST 70 W
