Historical luminaire THL-237 "Quedlinburg"

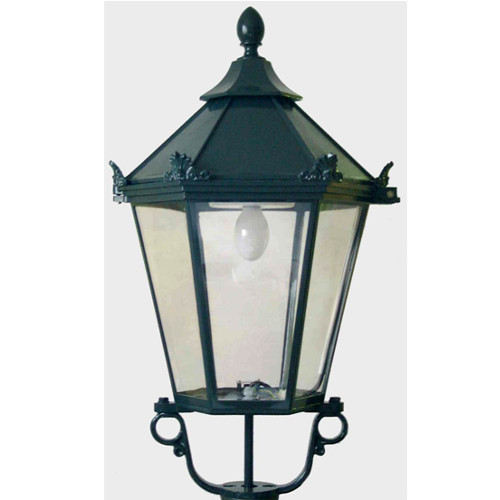

Historical luminaire thl-237 picture


Hexagonal Schinkel luminaire used for the illumination of historical local areas and special objects. This luminaire combination puts every building in the right.
The application can be carried out in conjunction with our historical iron candelabra, but also on wall brackets and in multiple combinations.

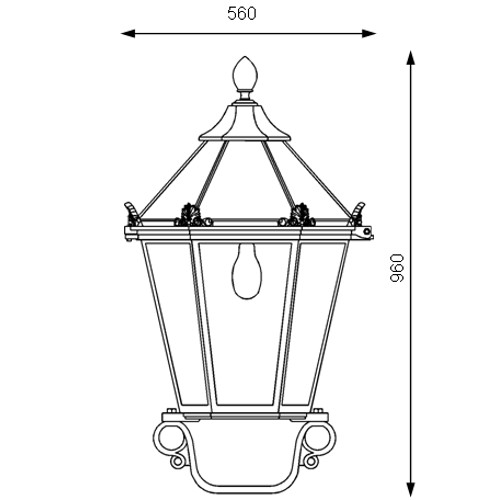

Historical luminaire thl-237 drawing

Luminaire housing:
· Aluminium casting and aluminum sheet

Fitting roof:
· Coppersheet or aluminumsheet, painted

Reflector:
· Aluminium, white powder coated

Glass:
· PMMA or PC, clear or opal structured

Fastening elements:
· V2A

Varnishing:
· RAL color of your choice

Installation:
· LED
· 1xE26 ES
· 2xE26 ES
· TCD
· HSE
· HIE
· all electric parts with VDE mark

Protection category:
· IP 54

Protection class:
· SK I, SK II available on request

Bow luminaires:
· Plaitbow, ø 64 mm, optional flange bow possible

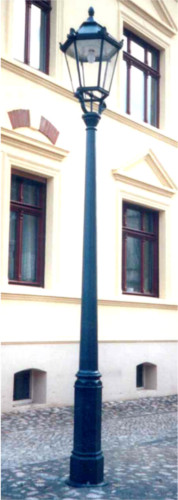

Historical luminaire THL-237 on candelabra THK-600/600A
