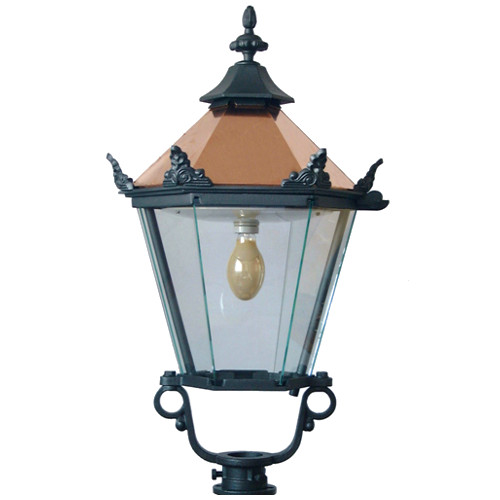

Historical luminaires THL-220/225/1230 "Baden-Baden"
A version of our classic "Baden-Baden" provided with corner spandrels.

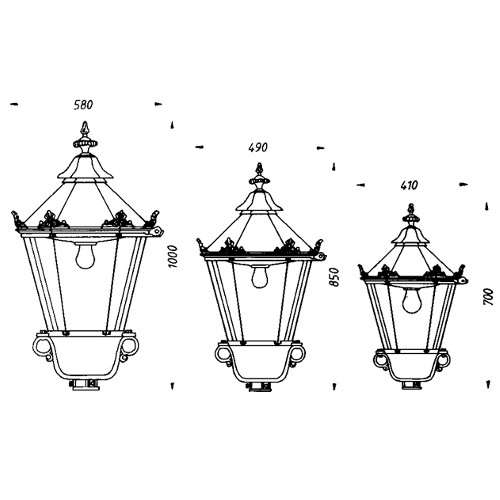

Through three different sizes, this luminaire open up numerous application possibilities in both the public as well as in the private sector.
The application can be carried out in conjunction with our historical iron candelabra, but also on wall brackets and in multiple arm combinations.
Luminaire housing:
· Graycast, braceless, with 2 spacer tubes
Fitting roof:
· Copper sheet or aluminumsheet, painted
Reflector:
· Aluminium, white powder coated
Glass:
· Crystal glass, 4 mm thick (opal glass with extra charge)
Fastening elements:
· V2A
Varnishing:
· RAL color of your choice
Installation:
· LED
· 1xE26 ES
· 2xE26 ES
· TCD
· HSE
· HIE
· all electric parts with VDE mark
Protection category:
· IP 54
Protection class:
· SK I, SK II available on request
Bow luminaires:
· flange bow 64 mm ø, other dimension possible through adapters

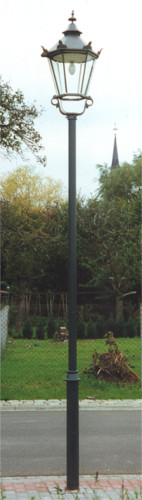

Historic luminaire THL-220 on a steel pole
