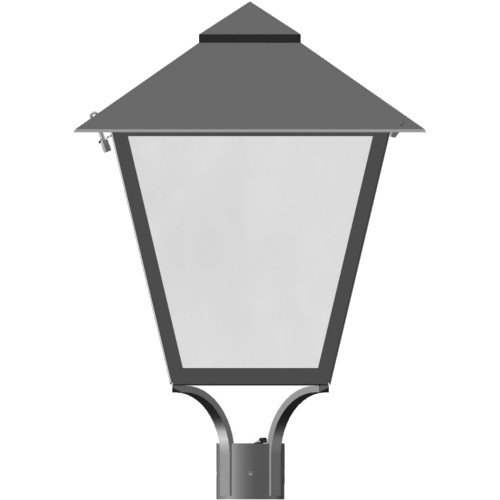

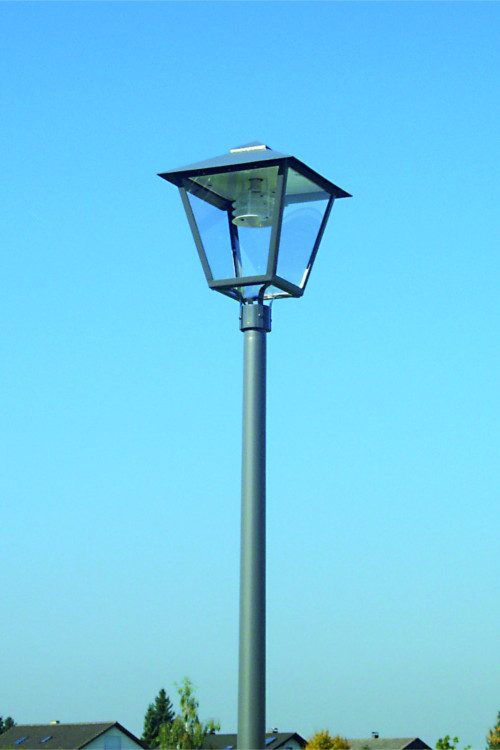

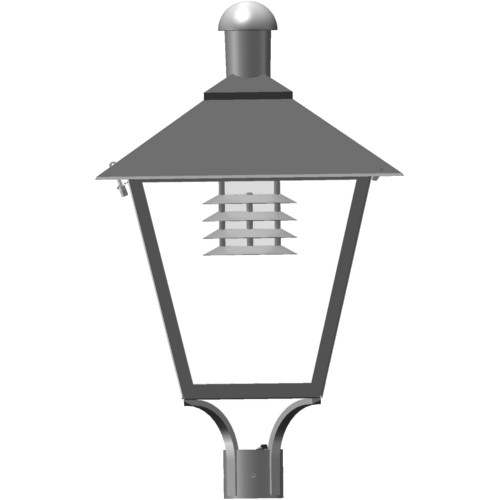

Luminaire dimensions:
· Luminaire height 730 mm
· Luminaire roof 520 x 520 mm
· Recommended light point height up to 4,5 m

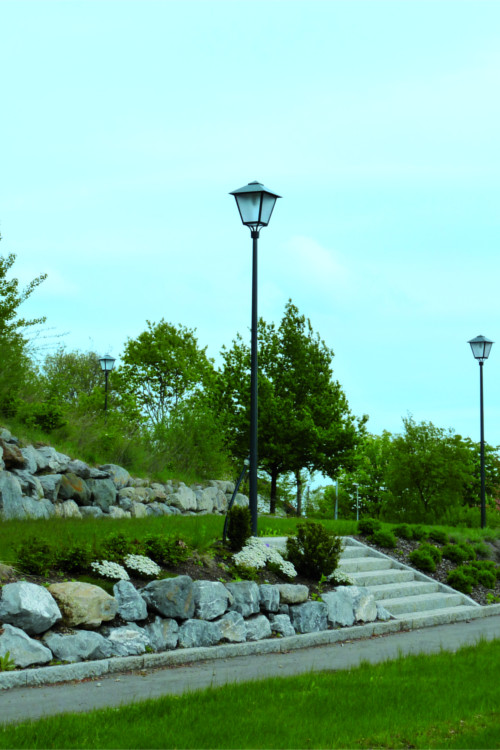

Areas of application:
· Fixed lighting of residential, roads and shopping streets
· Park and green areas
· Pedestrian zones
· Parking spaces
Light point height: up to 4,5 m
Maintenance: Toolless
Electrical installation:
· LED
· HPS 35-100 Watt
· HID 35-70 Watt
· TCD
· TCL
· Tool-free exchangeable electroblock
· VDE test mark on all electrical components
· manufactured and tested according to VDE guidelines
· CE mark
· Electrical unit is compensated
· Luminaire with connection cable to cable junction box
IEC protection classes: I
IP Code: IP 54
Material:
· Luminaire basket in stainless steel
· Roof and lighting bow made of aluminum sand cast
Coating: all parts are coated after careful preparation in all RAL colors or DB shades
Glass: Polycarbonate basket - no single discs - optionally clear, opal or blind
Fastening: All fastening elements are made of stainless steel
Special equipment:
· IEC protection classes II
· Power selector
· Shielding with asymmetrical light distribution

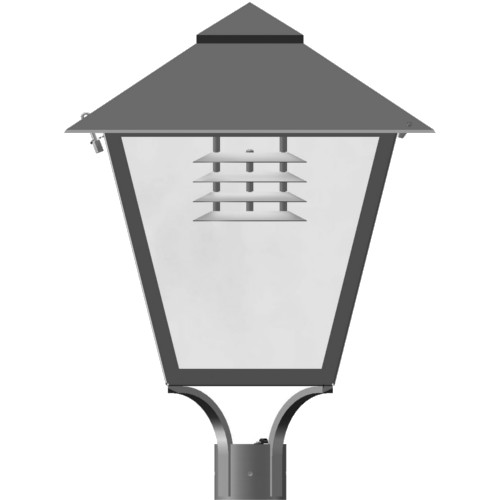

· Symmetrical lamella reflector mirrored
· High performance mirror
Luminaire dimensions:
· Luminaire height 730 mm
· Luminaire roof 520 x 520 mm
· Recommended light point height up to 4,5 m
Areas of application:
· Fixed lighting of residential, roads and shopping streets
· Park and green areas
· Pedestrian zones
· Parking spaces
Light point height: up to 4,5 m
Maintenance: Toolless
Electrical installation:
· LED
· HPS 35-100 Watt
· HID 35-70 Watt
· TCD
· TCL
· Tool-free exchangeable electroblock
· VDE test mark on all electrical components
· manufactured and tested according to VDE guidelines
· CE mark
· Electrical unit is compensated
· Luminaire with connection cable to cable junction box
IEC protection classes: I
IP Code: IP 54
Material:
· Luminaire basket in stainless steel
· Roof and lighting bow made of aluminum sand cast
Coating: all parts are coated after careful preparation in all RAL colors or DB shades
Glass: Polycarbonate basket - no single discs - optionally clear, opal or blind
Fastening: All fastening elements are made of stainless steel
Special equipment:
· IEC protection classes II
· Power selector
· Shielding with asymmetrical light distribution
· Symmetrical lamella reflector mirrored
· High performance mirror

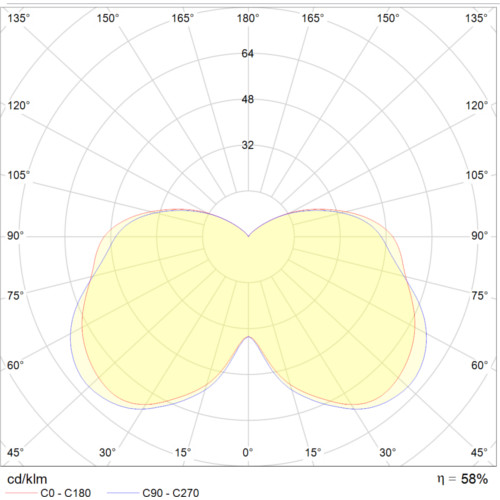

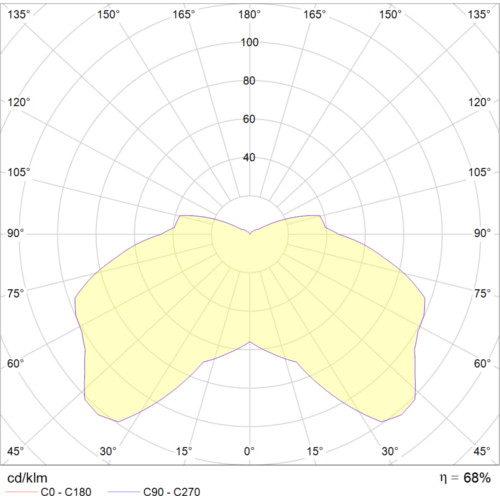

Polardiagram:

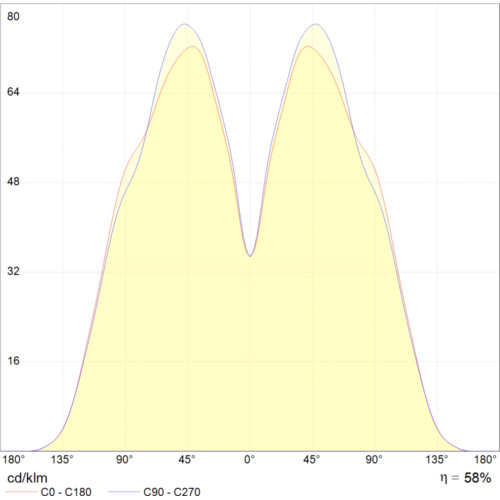

Cartesian diagram:
Light source: HSE 50 W
Polardiagram:

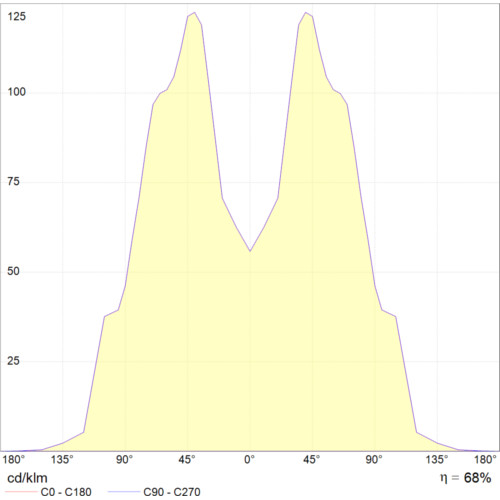

Cartesian diagram:
Light source: Osram NAV-E 70W
