Bollard luminaire TPL-3100
A light bollard shaped used to light paths, green spaces and public buildings.
With this interesting type of lighting an accent is put on the design.
Through its simple, attractive design, an individual level design and the plurality of selectable colors, it is specially made be desired.
Luminaire housing:
· Aluminum, hot dip galvanized steel pipe cable entry opening 50 x 150 mm with edge protection.
· On request, additional charge (TPL 3100 T) inspection door 320 x 100 mm with triangular fastener.

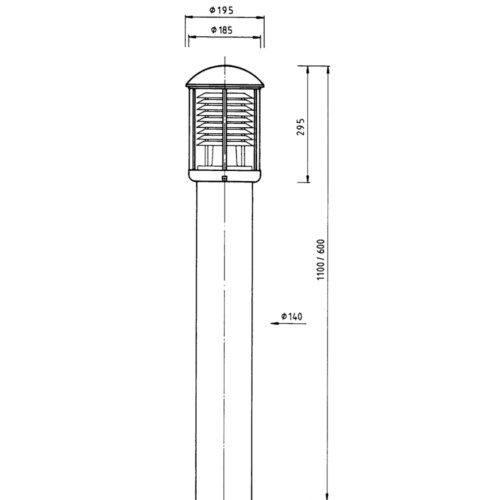

· Construction height 0.6 and 1.1 m available.
· Luminaire glass made of PMMA.
· All connecting elements made of V2A.
· All parts painted 2 times.
· Finish lacquer: RAL color of your choice
Electrical installation:
· LED
· 1 x HSE 50W
· 1 x HME 50W/80W
· 1 x TC-D 10-26W
· 1 x E 26
· Protection class l
· Protection category IP 44
Option:
· Internally glare by white cone blades.

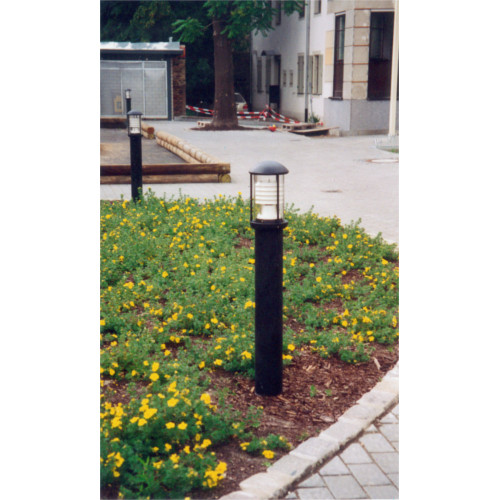

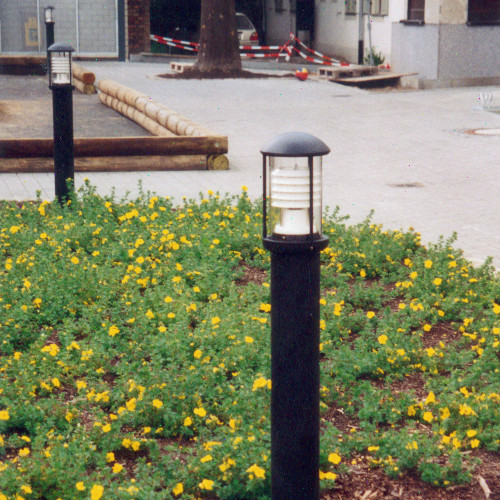

TPL-3100 Path illumination
TPL-3100
