Decorative top luminaire with mast boom for illumination of road space for parks and green spaces.
This luminaire is designed for use with cantilevers or wall arms.
The free color selection allows a wide margin of discretion for a variety of applications.
Application areas:
Fixed illumination from:
· Residential and shopping streets
· Parks and green areas
· Representative areas
· Pedestrian areas
· Promenades
· Parking and marketplaces
Lightspot height: 3.0 m to 4.5 m, for suspended installations of towers and bow masts of steel.
Luminaire housing:
· Aluminium sheet / Al-casting powder coated or painted
· RAL color of your choice
· Innerlying symmetrical reflector.

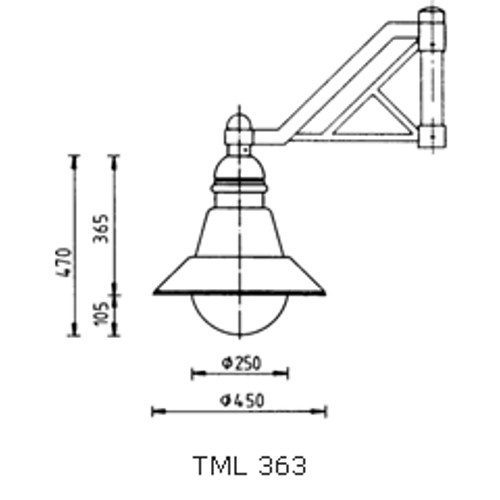

Cylinder: PMMA or PC (charge) opal or clear, Ø 250 mm, bayonet lock
Electrical installation:
· LED
· HSE 50 - 70 W
· HIE
· On request also installation for two illuminants possible
· Protection class: I
· protection category: IP 44
All connecting elements made of stainless steel.
Polar graph:
Cartesian graph:
Light source: HSE-E 70W

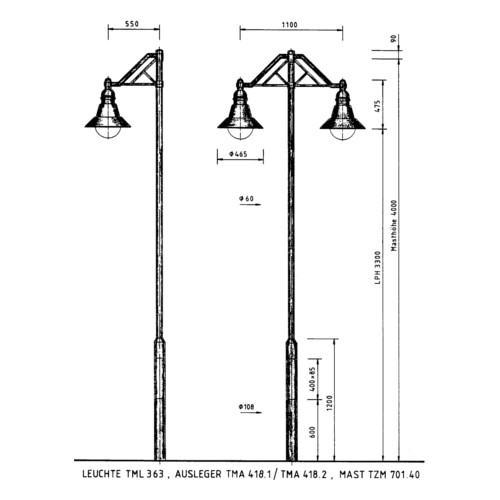

Decorative Luminaire TML-363 on jib and steelpolet

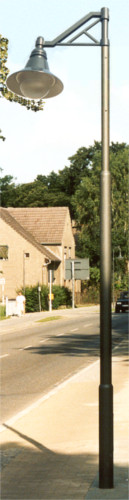

Decorative Luminaire TML-363 on jib
