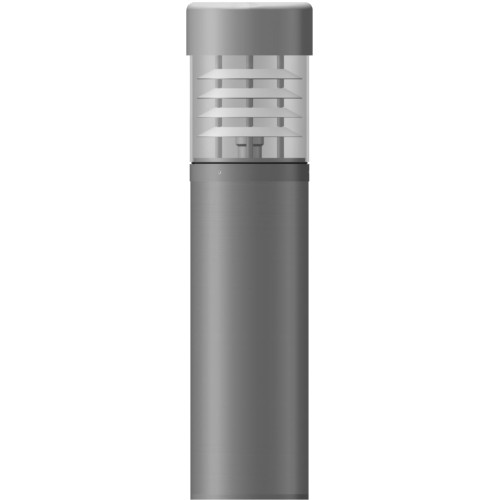

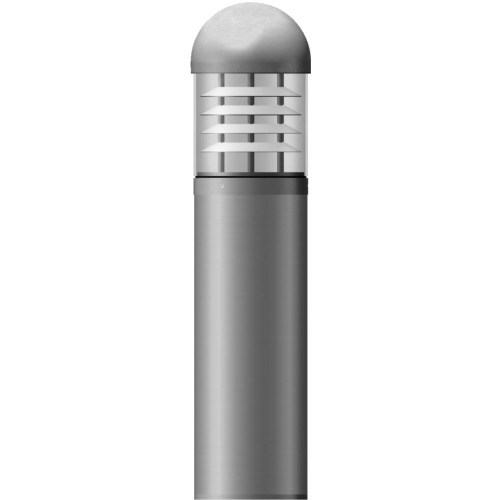

Luminaire dimensions:
· Bollard high: 780 mm
· Bollard ø: 180 mm

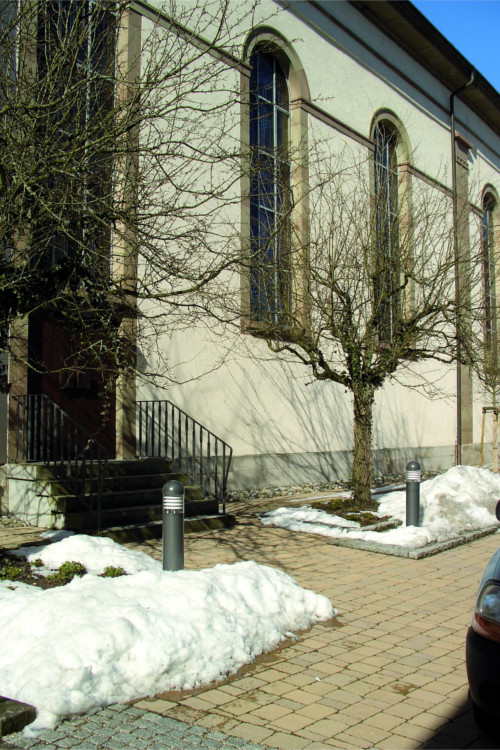

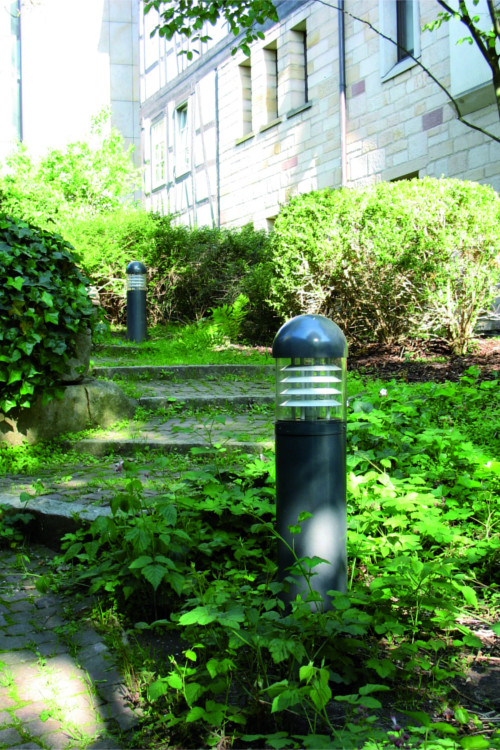

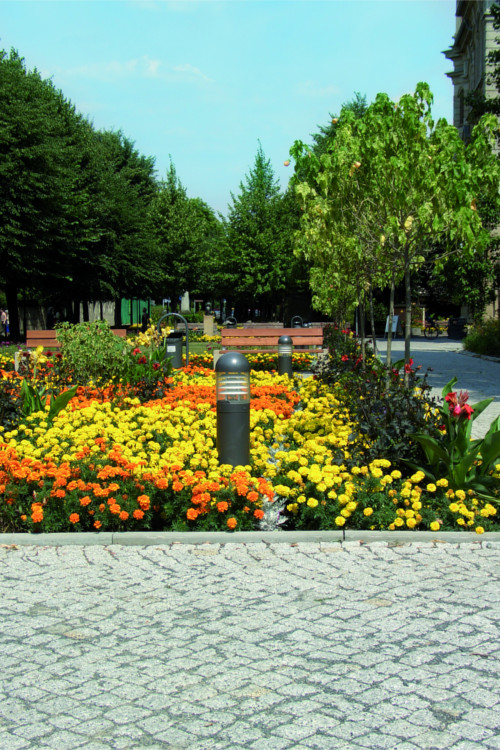

Areas of application:
- Park and green areas
- Pedestrian zones
- Parking spaces
Electrical installation:
- LED or
- HCI 35 Watt
- NAV 35-50 Watt
- TCD
- Electrical unit is compensated
- VDE test mark on all electrical components
- CE-Sign
IEC protection classes:
- I
IP Code:
- IP 54
Material:
- Carrier element made of thick-walled aluminum tube
Coating:
- all parts are coated after careful preparation in all RAL colors or DB shades
Glass:
- Acrylic opal, clear or diffuser
Fastening:
- All fastening elements are made of stainless steel
Special equipment:
- IEC protection classes II
- Power switch
- Compact fluorescent lamps
- Symmetrical lamella reflector mirrored
- Shielding with asymmetrical light distribution
- Glass of polycarbonate
- Other bollards height
- Grounding piece

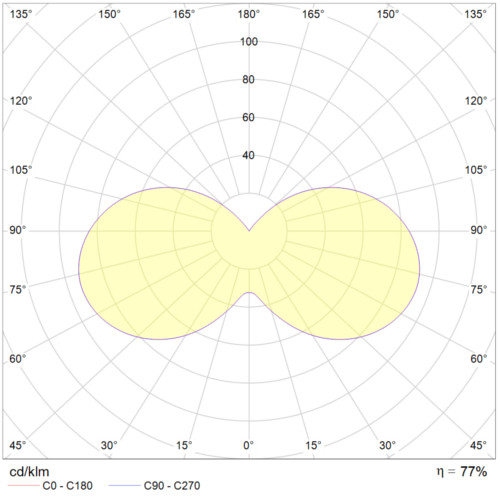

Polardiagram:

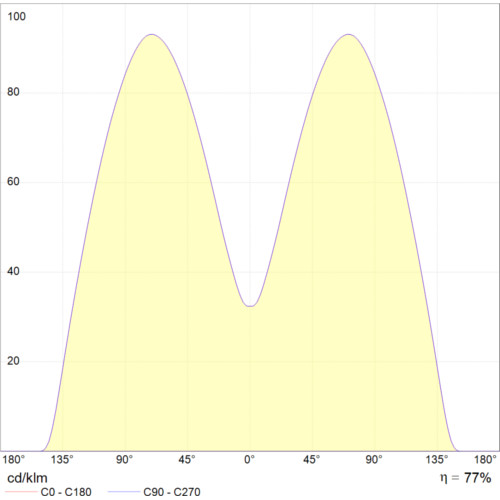

Cartesian diagram:
Light source: HSE 50 W

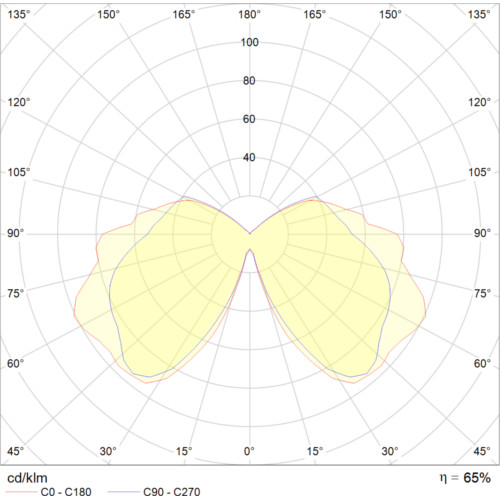

Polardiagram:

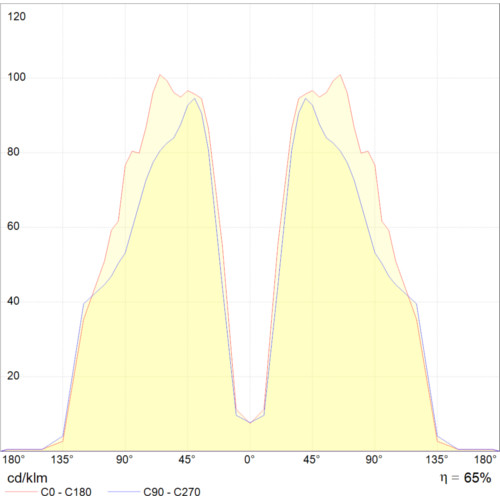

Cartesian diagram:
Light source: Osram HCI 35 W
